Product Details

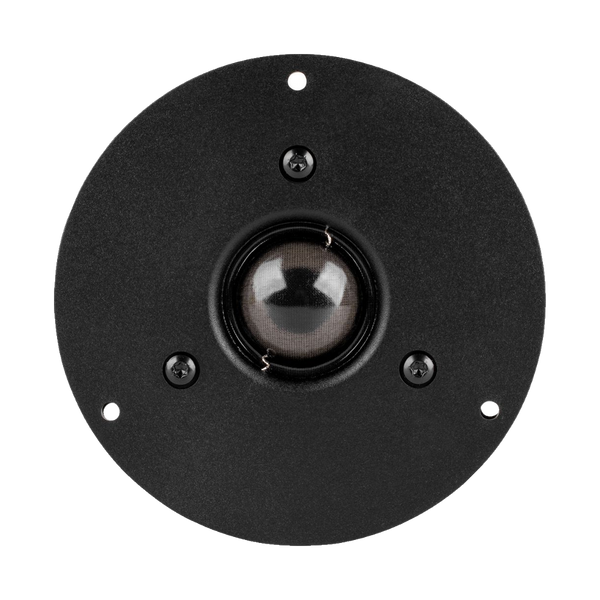

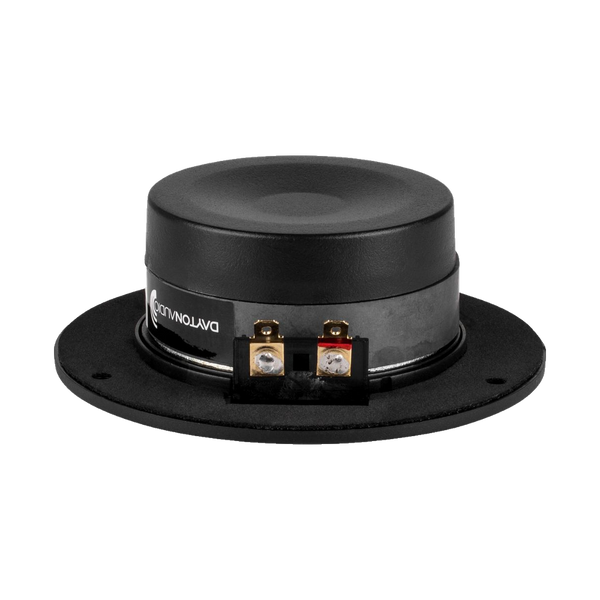

The Dayton Audio DC28F-8 1-1/8" silk dome tweeters nearly unbeatable cost-to-performance ratio makes it a favourite, best-selling product. Superior European design and performance at a fraction of the cost of similar audiophile high frequency transducers! Clinically tested and compared to Morel with amazingly similar results! Recommended for crossover points as low as 1,800 Hz!
Features:

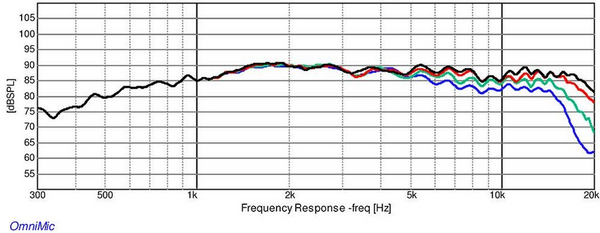

- Smooth, extended response
- Treated silk dome
- Damped rear chamber lowers resonance
- Ferrofluid cooled voice coil
- Sounds like tweeters costing far more!
- Great replacement for the Dayton DC28FS-8 1-1/8" Silk Dome Shielded Tweeter
Specifications:
| Code | DC28F-8 |
| Description | 1.125" SILK DOME TWEETER - DAYTON AUDIO |
| Cms | - |
| Coil | 28mmØ |

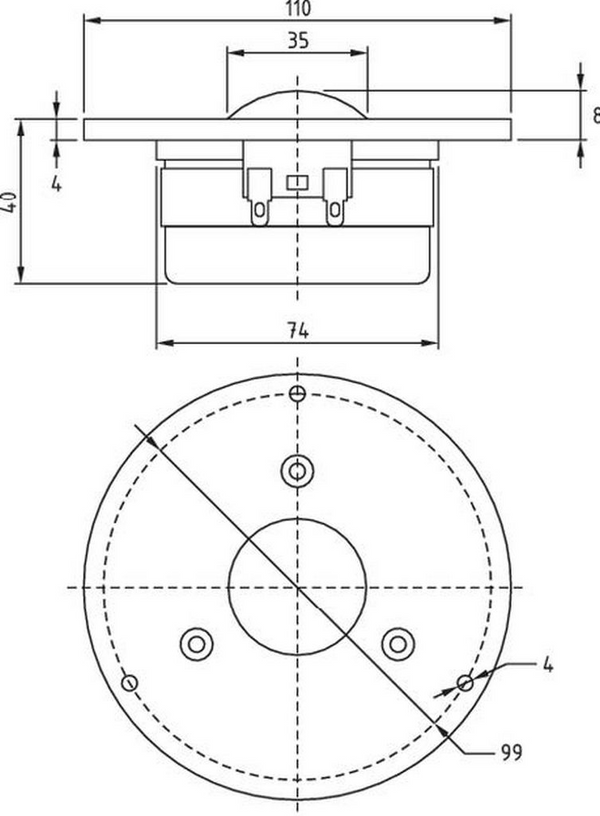

| Depth | 40mm |
| Diam. | 110mmØ |
| Fs | 834Hz |

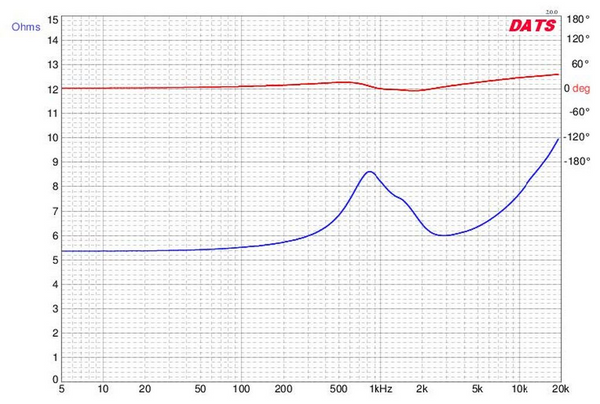

| Impedance | 8Ω (Re 5.4Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 1.125 |
| Le | 0.09mH |
| Manufacturer | Dayton Audio |
| Mms | - |
| Prms | 50W |
| Qes | 1.33 |
| Qms | 0.81 |
| Qts | 0.50 |
| Re | 5.4Ω |
| Sd | 6.6cm² |
| Sens. | 89.0dB |
| Size | 1.125" |
| Type | Tweeter |
| Vas | 0.01L |
| Zn | 8Ω |
| Series | Classic |
| Hole | 74mmØ |
